Our verdict of the Maxoak SP120:
Weighing not up to 7lbs, the Maxoak SP120 outputs a major quantity of energy in a handy and conveyable bundle. You are paying a top class for the portability regardless that, so imagine should you in truth want to elevate it round or whether or not a static panel may just do the activity.
Maximum transportable sun panels are tiny and in reality most effective designed to trickle price a smartphone. If in case you have a big transportable battery pack then discovering a suitably robust and really transportable sun panel will also be tough.
The Maxoak SP120 is each inexpensive, transportable, and with 120W output, robust sufficient to price even the most important of battery garage. It takes not up to a minute to deploy or pack away and weighs an insignificant 6.2 kilos (2.8kg). You don’t get a lot more transportable than that.
Retailing at $400 or £300, should you’re fast you’ll take hold of one at 30% off all through IndieGogo crowdfunding. The ones in Germany or the United Kingdom can get one even sooner from Amazon (beneath the PowerOak logo), and use our unique £30/€30 coupon–simply input the code makeuseofA on the checkout.
At a Look: Maxoak SP120
- Panel sort: Monocrystalline, 23% potency
- Open circuit voltage: 23.7V
- Max present: 6.6A
- Plug: MC4
- Dimensions (spread out): 16.three x 66.7 inches (415 x 1695mm)
- Dimensions (folded): 16.three x 16.1 inches (415 x 410 mm)
- Weight: 6.2 lbs (2.8kg)
- US/International: Again the IndieGogo for 30% off retail worth of $400
- Germany: Purchase the PowerOak SP120 (use code makeuseofA for £30 off)
- UK: Purchase PowerOak SP120 (use code makeuseofA for £30 off)
Maxoak SP120 Design

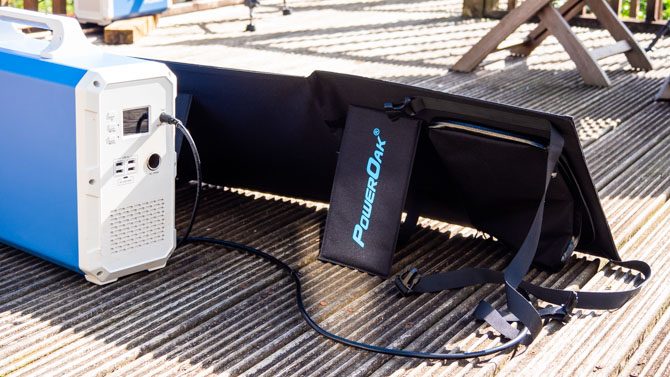

The Maxoak SP120 unclips and folds out to expose 4 panels. A handy elevate care for is positioned on one finish, with 3 loops at the different finish for striking the panels. at the rear of every segment is a stiff leg, secured with velcro, permitting you to attitude the SP120 as much as 45-degrees.

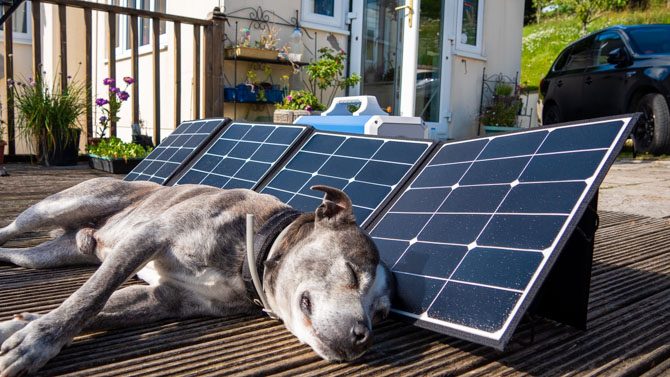

Every panel is fabricated from monocrystalline sun cells. Those are extra environment friendly than less expensive polycrystalline cells, bearing in mind larger energy from the similar dimension panels. Every panel is lined in ETFE, and Maxoak claims they may be able to be bent to round 20-30 levels ahead of snapping. This isn’t to mention you must make a dependancy of bending those panels, however somewhat that you simply needn’t fear must you by accident follow just a little drive to them.
The SP120 is IP65 rated, that means it must face up to some rain, however don’t get it soaked.
The hardwired 3m cable which terminates in MC4 plugs is saved in a zipped aspect pocket. Those are same old sun panel connectors, so you’ll simply daisy chain a few panels in combination (and even complement a static panel should you sought after). Alternatively, the adaptor cables to feed this right into a battery aren’t integrated. In relation to Maxoak, the adaptor cable is provided with the battery, however should you’re pairing this with a battery from some other producer, it’s possible you’ll want to supply your individual cable. I discovered the pocket at the aspect was once big enough to additionally retailer the cables that got here with the EB240 (MC4 to DC9mm).

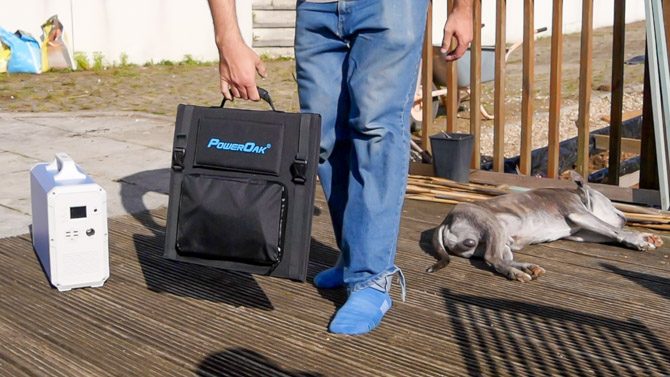

Transportable and Handy

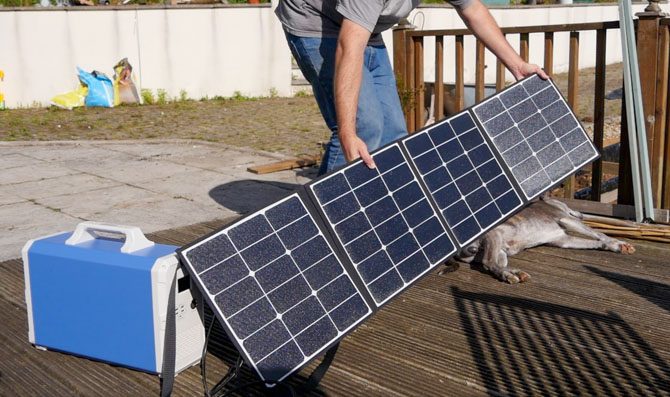

Some of the good things about being really easy to hold and transfer round is that you’ll simply reposition the SP120 to make the most of the solar any time of day. You’ll lay the panels flat for the top noon solar, then attitude them or grasp them vertically for morning or night. This lets you get the best price conceivable—extra so than you possibly can with cumbersome static panels. Our rooftop panels most effective begin to generate after lunchtime!
After all, you shouldn’t be expecting it to output 120 watts always, however I used to be ready to get a just right eight hours of cast charging on a just right day.
How Lengthy Will It Take To Price My Battery?
Assuming 8 hours of excellent solar in step with day, let’s say you moderate 100W; that’s 800Wh general. The Maxoak EB240 Maxoak Bluetti EB240: Large Battery Garage, Funds Value With some of the biggest capacities available on the market, the Maxoak Bluetti EB240 options built-in sun charging circuit and AC transformer. The 1000W output is the one restricting issue, however that are meant to be sufficient for… Learn Extra —which is basically a huge retailer of power—holds a most of 2400Wh. In order that would take about three days to price. For a smaller battery just like the Maxoak AC50 (500Wh), it is advisable simply price it and extra, in not up to an afternoon.
Maxoak AC50 Maxoak AC50 Purchase Now On Amazon $399.99
With same old MC4 panel connectors, it’s simple to daisy chain those panels in combination and price two times as speedy.
Do I Want a Battery?
Sun era generally is a little complicated from time to time. Sun panels output a variable voltage relying at the depth of the solar, which isn’t a lot use on its own. You want some type of regulator to mend the voltage at a undeniable degree. Smaller panels which can be designed to trickle price smartphones come with a integrated regulator that drops the voltage to 5V (USB).
The SP120 doesn’t come with a regulator, so it should be paired with one thing else ahead of you’ll make the most of the ability. Since the quantity of energy it produces is greater than you’ll generally use, the most productive factor to do is to place that energy right into a battery.
A battery backup just like the EB230, EB150, AC200, or AC50 contains a voltage regulator, battery, and AC/DC converter. It takes the sun output, shops it, and converts that energy to no matter voltage you want later. That may well be 110V AC, 45W DC on your pc, or 5V USB on your smartphone.
Will have to You Purchase the Maxoak SP120?
As a conveyable sun panel, it in reality doesn’t get extra handy than this. 120W is a superb quantity of energy and matched with a handy go back and forth battery just like the AC50, you might have a limiteless supply of energy on your adventures and off-grid wishes.
However imagine should you in reality want to elevate a sun panel round, since you’re paying a top class for the privilege. A in a similar way specced and even increased potency static panel will also be bought for $150 or much less. That suggests you’re paying about 3 times as a lot in step with watt as the cost of being ultra-portable. If you happen to’re bearing in mind the SP120 to hold between your own home and cabin within the woods, for example, you may well be purchasing two higher-powered rooftop panels as an alternative.
Clutch your self a discount at the IndieGogo now. However be fast, there are just a few days left at the marketing campaign to get 30% off.
