There’s an $80 million riding simulator in Iowa, and we attempted it out

To most of the people, the phrases “riding simulator” most definitely conjure up ideas of video video games. That is comprehensible: franchises like Gran Turismo and Forza have bought within the tens of tens of millions. Whilst the constancy of even the ones video games is little in need of superb, on the finish of the day, they are video games in the beginning. However there are different excellent causes to simulate riding, whether or not that is to learn about distracted or impaired riding or to higher engineer a race automobile. As you could believe, those simulators are just a little bit extra specialised than a video games console and a guidance wheel—and a excellent deal dearer, too. What you won’t believe is that one of the vital complex riding simulators on the planet, to not point out probably the most biggest and costliest, can also be present in Coralville, Iowa.

It is known as the Nationwide Complicated Using Simulator (NADS). If truth be told, the power—one in every of our nationwide labs and controlled by way of the College of Iowa—is known as NADS; the truly dear riding sim is known as NADS-1, and it is a sight to look. If truth be told, till Toyota constructed a brand new simulator in Japan in 2007, it was once essentially the most complex riding sim on this planet, and it nonetheless has the second-largest movement envelope of any riding simulator that these days exists. (There may be additionally a NADS-2, which is not somewhat as complex as it does not transfer.)

NADS-1 lives in a hanger-like chamber, smaller than a soccer box, larger than a basketball courtroom, and appears very similar to the very high-end flight simulators you could to find at Boeing or Airbus. There may be the dome—a white tablet sufficiently big to suit a full-size automobile and even the highest two-thirds of a category eight truck—round which is displayed a 360-degree digital atmosphere. The dome is fixed atop six hydraulic legs, which let it pitch ahead and again and roll backward and forward. The legs are fixed upon a rotating ring, which we could all of the unit yaw backward and forward, and the entire association is fastened to an X-Y platform that we could it transfer throughout the room, to higher simulate a automobile accelerating and braking.

Even so, NADS-1 has some barriers. “The gap that we have got within the bay in the market isn’t enough space to do 1:1 movement for a braking maneuver from excessive velocity to a forestall, so we nonetheless must scale our movement,” defined Chris Schwarz, director of engineering and modeling analysis at NADS. “However we will be able to play some methods with emotion. Like if you are braking, then we will be able to translate you within the room, which is the way you skilled braking within the automobile. But when we run out of area within the simulator, which we possibly will, then we will be able to transition a few of that deceleration cue into tilt and let gravity take over that cue. And whilst it is doing that, then we will be able to take the dome and slowly pull it again to the middle of the room to organize for what is subsequent, which is most likely an acceleration from begin to again on top of things,” Schwarz informed me.

Throughout our consult with, the dome was once arrange with a full-size automobile fixed on 4 extra actuators which can be there to simulate the bumps and vibrations you would be expecting when riding over other avenue surfaces. Above it, 16 LED projectors each and every throw a 1920×1200 slice of the simulated atmosphere onto the partitions of the dome. The digital atmosphere is known as Springfield for a similar explanation why Matt Groening selected it for The Simpsons, and it is a 285-square mile (738km²) virtual proving flooring that features a mixture of city and suburban streets, rural highways, and divided-lane interstate highways. (It additionally comprises some familiar-looking constructions if you realize Iowa Town and Coralville.)

So, you don’t use it to play video games?

Very similar to Ford’s VIRRTEX—the final truly dear riding simulator I visited—NADS-1 is used for numerous human components analysis, and these days it is in the midst of a learn about at the oh-so topical downside of distracted riding and conditional automation.

“The primary theme is to verify of the driving force’s readiness in stage three automation. [That is when the automobile is totally accountable for riding and situational consciousness, however the human driving force should be in a position to renew keep an eye on when requested.] So we are interested by assessing the driving force’s cognitive and bodily functions when you find yourself giving them a takeover request, as a result of in stage three automation drivers can also be, you realize, out of the loop, doing many different issues,” mentioned Pujitha Gunaratne, a researcher at Toyota’s Collaborative Protection Analysis Heart who is operating with NADS.

Because the level is to review driving force conduct, the internal of the Camry was once dotted with a variety of cameras to watch the driving force from a number of angles, plus infrared LEDs to supply illumination and a decidedly non-standard heads-up show. Each this HUD and the virtual show between the automobile’s analogue dials have been configured to turn comments on which automation state the automobile was once in. Somewhat than simply give an explanation for to me what the analysis concerned, Schwarz, Gunaratne, and their colleagues kindly let me have a move, working me thru an abbreviated set of checks.

After you have comfy and as much as cruising velocity at the freeway, I used to be requested to interact the automobile’s stage three automation, then busy myself answering a variety of multiple-choice quizzes on a pill. (The science questions have been fiendishly tricky, and lots of concerned spotting 18th-century portraits to resolve which long-dead white guy gave his identify to a couple bodily belongings or different. I felt somewhat demoralized with how low my ranking was once.) At quite a lot of issues, an match would happen requiring my consideration at the avenue—a abruptly stopped automobile in my trail, as an example, or a short lived lane closure—every now and then whilst I used to be riding, every now and then whilst I used to be distracting myself with the pill. How slowly or briefly I answered, in addition to all my keep an eye on inputs into the automobile, have been all cataloged by way of the array of cameras and sensors, which might were added to the learn about’s dataset had I been an actual analysis player.

They have got actual vehicles, too

“We would like to take a look at to grasp the distance of what drivers are going to be doing in those upper ranges of automation and what have an effect on the ones various kinds of duties have [regarding] engagement with the riding duties. So this interaction between the cognitive call for of a role, how a lot it pulls your thoughts clear of riding, and the bodily calls for, how a lot pulls your portions of your frame clear of dragging,” mentioned John Gaspar, director of human components analysis at NADS. The proper nature of distraction is an lively space of investigation in this day and age, with no less than one contemporary learn about suggesting that it is all to do with the place your eyes are, even though a lot more analysis displays how deficient we people are at multitasking.

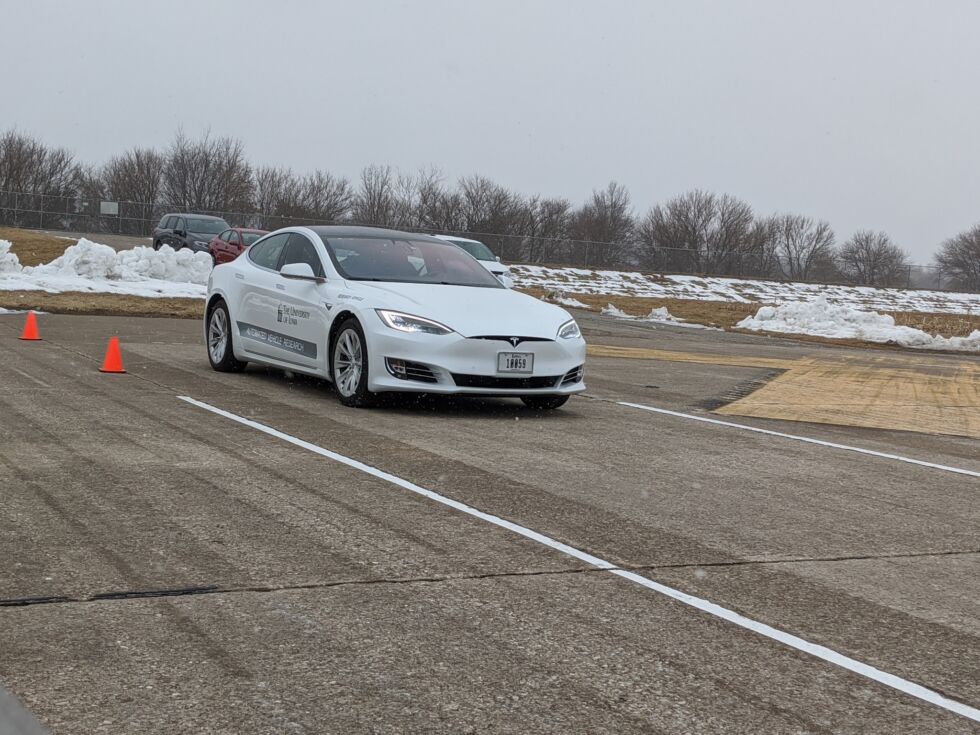

To that finish, NADS has a variety of instrumented check cars which is able to do a little on-road affirmation of simulator findings. On this case, I visited a decommissioned stretch of close by runway, a couple of 3rd of a mile (500m) lengthy. As with the riding sim, I were given to play guinea pig in the back of the wheel of a white Tesla Type S, with directions to observe a chase automobile with the automobile’s adaptive cruise keep an eye on and lane holding engaged. (The runway have been marked up with lane markers to be legible to the automobile’s lane-keeping digicam sensors.) Each and every time, I used to be given a special process to accomplish whilst cruising in the back of the chase automobile—looking for NADS’ homepage at the Tesla’s infotainment display screen, composing an e mail on my telephone, and counting unfastened trade from the cupholder. Someday, the chase automobile would brake or trade lanes to expose a lane closure, requiring me to react.

I knew there was once going to be an match requiring my consideration ahead of too lengthy, given the fairly brief period of the runway, because of this I did not commit all my consideration to the distracting process handy. And I knew that there was once little risk, what with the loss of any oncoming visitors or freeway infrastructure with which to collide at velocity. Even then, I nonetheless ended up having to brake more difficult and with much less margin between me and the automobile forward than I might be happy with in the true global. For the reason that the issue of distracted riding continues to worsen, it it appears that evidently does endure announcing: do not do any of the ones issues if you are additionally concurrently within the driving force’s seat of a shifting car, despite the fact that you do have a complete suite of complex driver-assistance techniques!
