Inclement climate — specifically rain and snow — threaten to forestall self reliant automobiles of their tracks. That’s as a result of precipitation covers cameras essential to the automobiles’ self-awareness and methods sensors into perceiving hindrances that aren’t there. Plus, dangerous climate tends to difficult to understand highway signage and constructions that in most cases function navigational landmarks.
Thankfully, researchers at MIT’s Pc Science and Synthetic Intelligence Laboratory and Lincoln Laboratory are at the case. In a paper that will likely be revealed within the magazine IEEE Robotics and Automation Letters later this month and introduced in Might on the Global Convention on Robotics and Automation (ICRA), they describe a machine that makes use of ground-penetrating radar (GPR) to ship very excessive frequency (VHF) electromagnetic pulses underground to measure a space’s mixture of pipes, roots, rocks, filth, and different options. The GPR builds a basemap that an onboard pc correlates, contributing to a third-dimensional GPS-tagged subterranean database.
Consistent with paper lead creator and CSAIL Ph.D. pupil Teddy Ort, it’s the primary time builders of self-driving methods have hired ground-penetrating radar, which has up to now been utilized in fields like building making plans, landmine detection, and lunar exploration. “When you or I grabbed a shovel and dug it into the bottom, all we’re going to peer is a host of filth,” he stated. “However [localizing ground-penetrating radar] can quantify the particular components there and examine that to the map it’s already created in order that it is aware of precisely the place it’s, while not having cameras or lasers.”

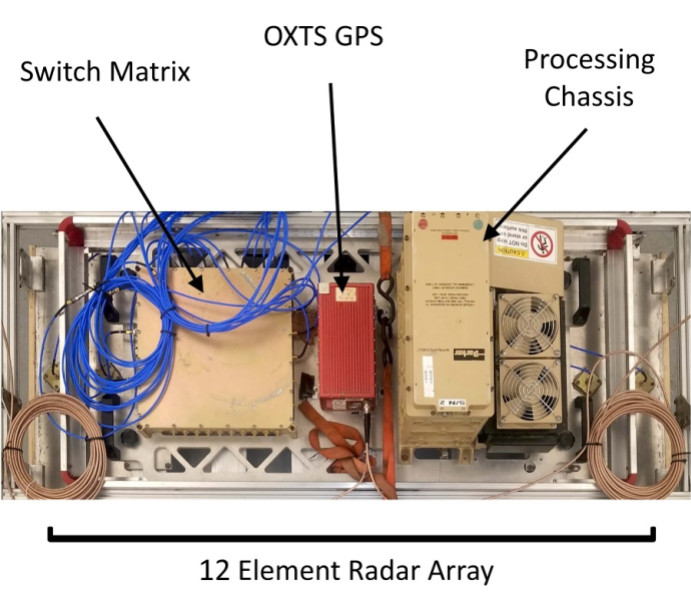

Above: A categorised schematic of the GPR sensor.
Symbol Credit score: MIT CSAIL
The researchers discovered that on a closed nation highway in snowy stipulations the navigation machine’s moderate margin of error used to be about an inch in snowy stipulations in comparison to in transparent climate. The GPR had a bit of extra hassle with wet stipulations — the precipitation brought about extra water to soak into the bottom, resulting in a disparity between the unique readings and the present stipulations — however it used to be off by way of most effective a median of five.five inches. Extra impressively, over a six-month trying out length, the group by no means needed to take the wheel.
Ort and coauthors word that the manner wouldn’t paintings fully by itself since it will probably’t come across issues aboveground. Additionally, the GPR knowledge units are lately tricky to sew in combination as a result of aboveground components like multi-lane roads and intersections, and the present hardware is just too cumbersome and huge to suit into maximum business automobiles.

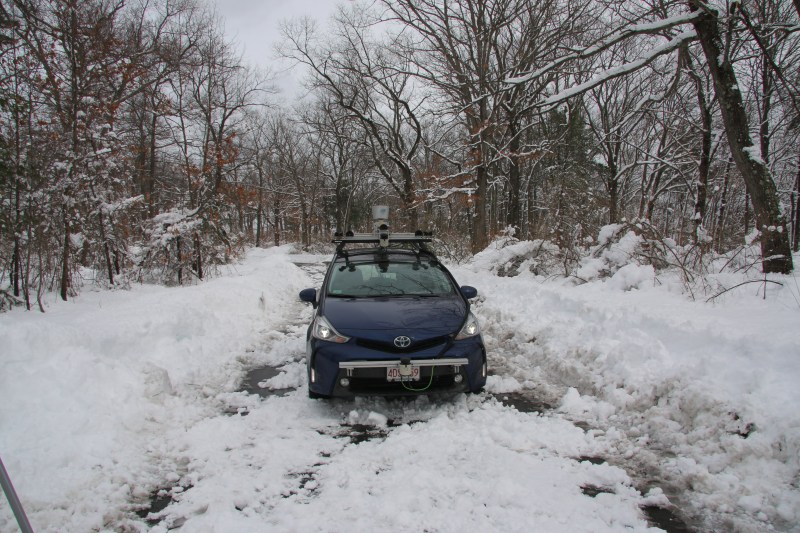

Above: MIT CSAIL’s automotive within the snow from the entrance.
Symbol Credit score: MIT CSAIL
However they are saying that the GPR may simply be prolonged to highways and different high-speed spaces and that its talent to localize in dangerous climate method it might be able to be coupled with present approaches, like cameras and lidar. Any other benefit? The machine’s underground maps have a tendency to carry up higher through the years than maps created the use of imaginative and prescient or lidar, because the options of an aboveground map are a lot more prone to exchange. As an added bonus, they take in more or less 20% much less area than the standard 2D sensor maps that many firms use for his or her automobiles.
MIT spinout WaveSense, which got here out of stealth in August 2018, is already running to commercialize the machine. It’s the use of a model that Lincoln Labs researchers demonstrated may information an SUV centimeters inside a lane on a highway freshly covered with snow. The program used to be first evolved for army automobiles in areas with deficient or nonexistent highway markings.
“Our paintings demonstrates that this manner is if truth be told a sensible solution to lend a hand self-driving automobiles navigate deficient climate with out if truth be told having with the intention to ‘see’ within the conventional sense the use of laser scanners or cameras,” stated senior creator and MIT professor Daniela Rus.
