Believe a long term the place everybody at the street is the use of an Independent Car (AV). It sort of feels instantly out of the futuristic Netflix® tv sequence Black Reflect, proper? Now, believe if those self sustaining automobiles emit grimy exhaust and want common visits to the fuel stations to refill. It sort of feels anachronistic, like absolutely outfitting a wise house with the newest IoT units…handiest to attach all of it with dial-up web.
Independent automobiles aren’t, and received’t be, powered through only fuel. As a substitute, the central query is whether or not handiest utterly electrical AVs must be made or if AVs with hybrid engines will also be produced as smartly. There are arguments to be made for every facet.
To Hybrid or No longer To Hybrid
On one facet of the coin, most of the car firms growing self-driving automobiles be expecting their number one use — a minimum of to start with — to heart on ride-sharing, like taxis with out drivers. A hybrid engine that mixes fuel and electrical persistent permits automobiles to spend extra time at the street (and earning profits) than charging in a storage.
At the different facet, some automotive firms, together with environmental organizations, are involved that since those automobiles would most probably be riding passengers and making deliveries nonstop, the extent of air pollution would multiply exponentially, wreaking havoc at the setting.
Both method, electrical car batteries want to be optimized for self sustaining riding packages, with elements like battery persistent output and degradation taken under consideration. The usage of the COMSOL Multiphysics® instrument and add-on Batteries & Gasoline Cells Module, scientists and engineers can find out about and design battery programs for each hybrid and all-electric self sustaining automobiles.
Battery Designs with Optimum Energy Output
Via nature, self sustaining automobiles contain extra digital elements than common automobiles. Going past the automobile itself (in addition to its lighting fixtures, alarms, and radio), AVs comprise navigation programs and detection and varying apparatus. Huge quantities of persistent intake implies that batteries gets tired quicker than commonplace. Batteries for AVs want to be designed to last more and output extra persistent so they may be able to stay alongside of power calls for.
Battery Control Programs
In each hybrid and all-electric automobiles, the battery control device (BMS) is a particularly vital design issue. Via as it should be tracking the battery process, the BMS maximizes the power output, lifetime, and protection. Modeling a lithium-ion battery below isothermal prerequisites assist you to analyze elements which might be vital in a BMS design, together with:
- Voltage
- Polarization (voltage drop)
- Inner resistance
- State-of-charge (SOC)
- Price capacity
Imagine a type (beneath) of a 1D lithium-ion battery fabricated from graphite and lithium-ion manganese oxide (LMO), a cost-efficient and thermally solid gas cellular subject material, from the default settings within the subject material library within the Batteries & Gasoline Cells Module.

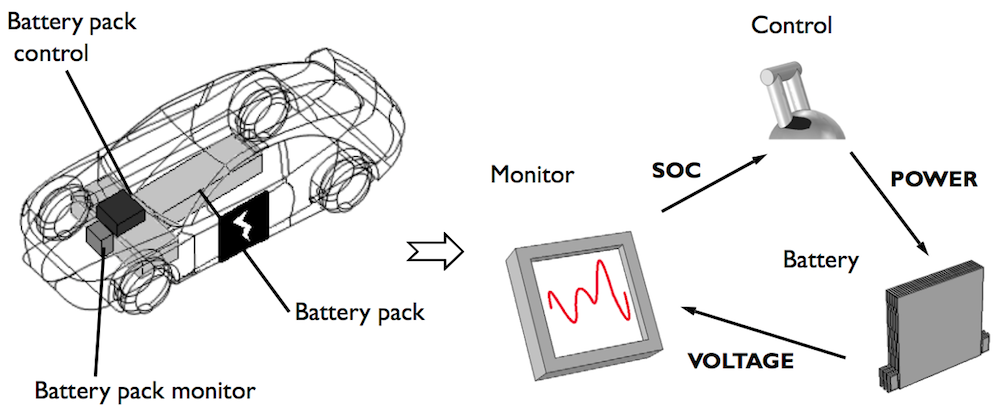

A schematic of the important thing elements of a BMS for electrical automobiles.
The battery type is made up of 4 domain names:
- Unfavourable porous electrode
- Separator
- Certain porous electrode
- Electrolyte
The type lets you take a look at inputs to look how they impact the full efficiency of the battery. Those elements can come with the preliminary cellular voltage; battery capability; thickness of the separator and electrodes; and cellular SOC, which is the proportion of payment closing in an electrical or hybrid automotive’s battery pack, analogous to the extent of the gas gauge in a gas-powered car.
Force Cycle
Automobiles perform in keeping with a selected pressure cycle, all through which the various temperature and voltage of the battery are monitored. The pressure cycle tells the BMS what the SOC of the battery is: in impact, whether or not the battery is empty or complete. Then, a keep an eye on unit stops the release (if the battery is empty) or payment (if the battery is complete).
The 1D type will also be expanded to incorporate a thermal research with a purpose to carry out drive-cycle tracking. Imagine a battery cellular this is subjected to a pressure cycle for a hybrid car.
Engineers can simulate the pressure cycle of the lithium-ion battery to expect its efficiency, analyze parameters which might be laborious to measure or validate experimental effects. A number of the elements that impact a battery’s pressure cycle come with:
- Inner resistance and polarization in every a part of the battery cellular
- Mobile SOC
- SOC of every electrode subject material
- Native temperature
- Fabrics

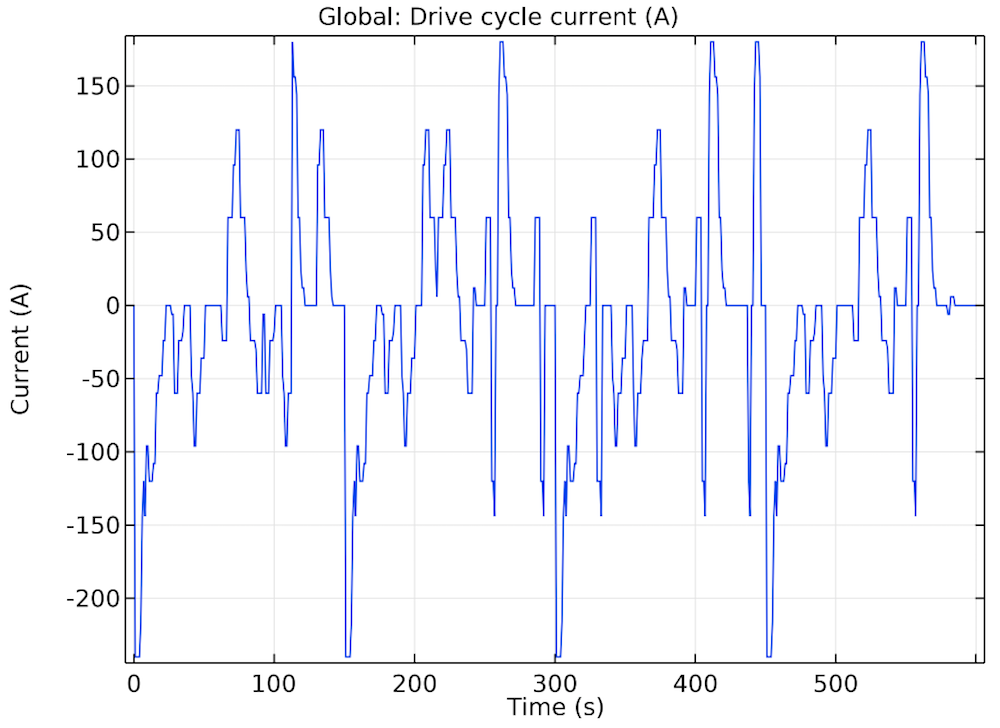

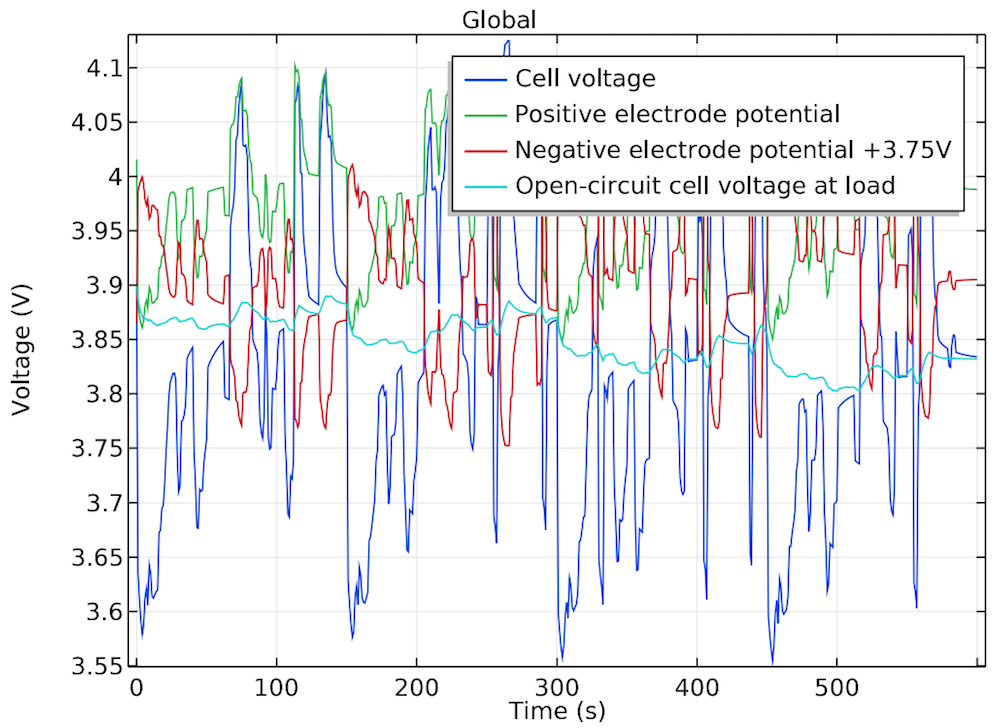

The present load enter will also be imported into the type from exterior pressure cycle knowledge, reminiscent of time as opposed to C-rate (a battery’s discharge fee relative to its most capability). On this case, the imported knowledge corresponds to values which might be conventional of a hybrid electrical car. The research can inform you numerous a few battery’s pressure cycle, together with the cellular voltage, electrical doable, and general polarization. It is usually imaginable to resolve the SOC of the cellular and electrodes at load (in addition to the temperature) all through the pressure cycle.
The result of this situation display that the pressure cycle is fitted to this sort of battery design. In addition they display that the warmth control might be stepped forward to ensure that the battery to deal with longer pressure cycles. As we’ll talk about within the subsequent phase, optimizing the pressure cycle of AVs will impact their degree of good fortune within the shopper transportation marketplace.
Energy vs. Power Analysis
Price capacity is used to resolve whether or not a battery is designed for its supposed function. There are two choices: power optimized and gear optimized. Power-optimized batteries have a big capability or power provide however reasonably low present rather a lot, which makes them a sensible choice to be used in moveable digital units. For hybrid and electrical automobiles, power-optimized batteries are the simpler possibility. Those batteries have a reasonably low capability however top present rather a lot; for instance, they may be able to be recharged at very top currents.
Going again to the 1D lithium-ion battery type, you’ll carry out a persistent as opposed to power analysis to resolve the battery’s fee capacity. The simulation investigates, below other present rather a lot, the release of the battery from its absolutely charged state and the payment of the battery from its absolutely discharged state.

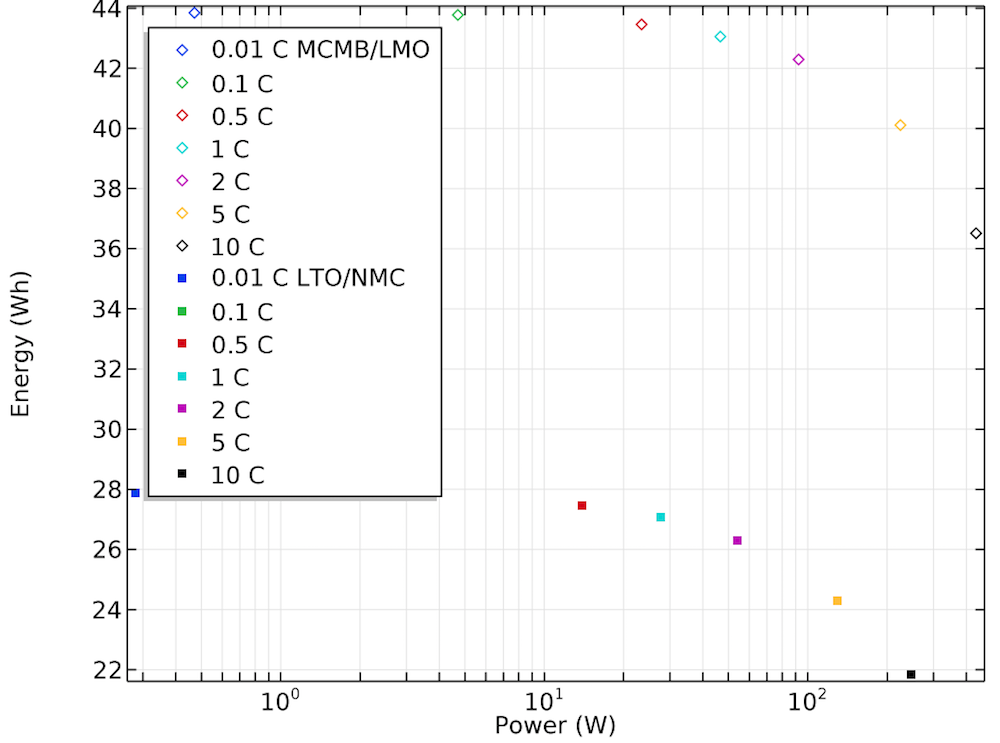

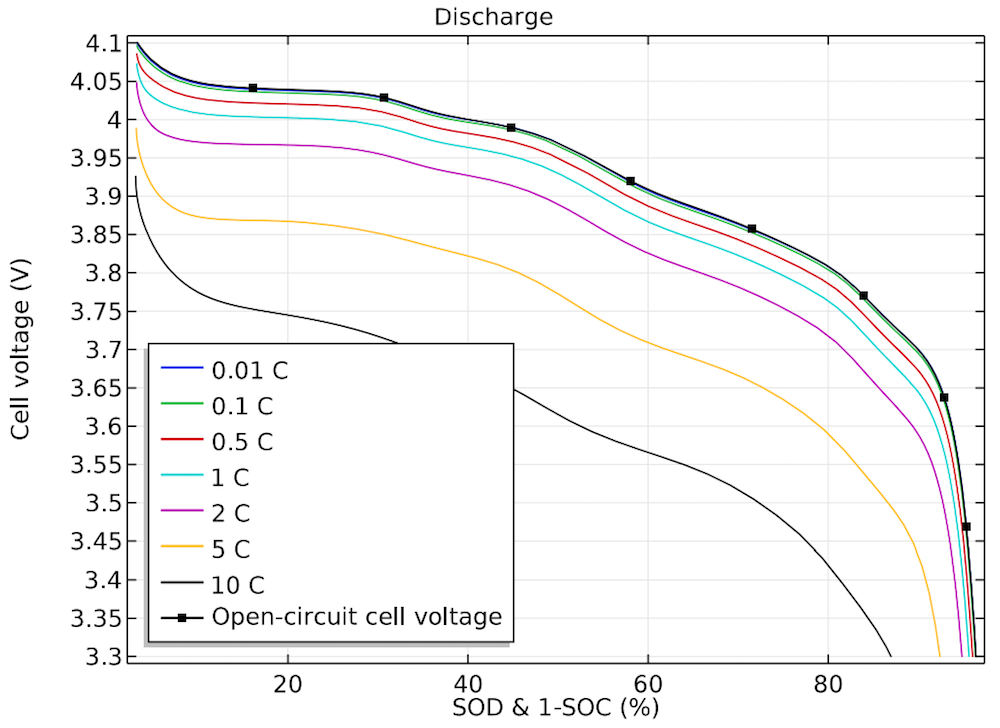

The effects display the cellular voltage all through the other present rather a lot and can be utilized to check the power and gear outputs of the battery design. The Ragone plot (above, proper) demonstrates the impact of battery chemistry and discharge fee at the capability of the battery.
Modeling Battery Degradation
The transition to self sustaining riding isn’t going to occur in a single day. Many innovators assume that once AVs first hit the marketplace, it’ll be within the type of ride-sharing, no longer particular person automobiles for a unmarried particular person or circle of relatives. Logically, which means every AV in a ride-sharing corporate’s fleet can be accessed through about ten riders consistent with day as a substitute of 1 and perform across the clock as a substitute of all through one particular person’s agenda.
In impact, the usage of AVs basically for ride-sharing will purpose automotive batteries to wear out a lot quicker than the ones in common, single-household automobiles. That is the place capability fade research comes into play.
Capability Fade
Batteries go through each capability fade and gear fade, however there’s a distinction. Energy fade is the decreased battery voltage for the given discharge fee. Capability fade is the lack of battery capability, irrespective of the present fee.
The other cellular fabrics that make up a battery, in addition to the quite a lot of combos between them, purpose other charges of getting old and will even boost up the method, and due to this fact the lack of battery capability. Sure elements that impact battery cellular getting old and degradation come with:
- Level of the weight cycle
- Possible
- Native focus
- Temperature
- Route of the present

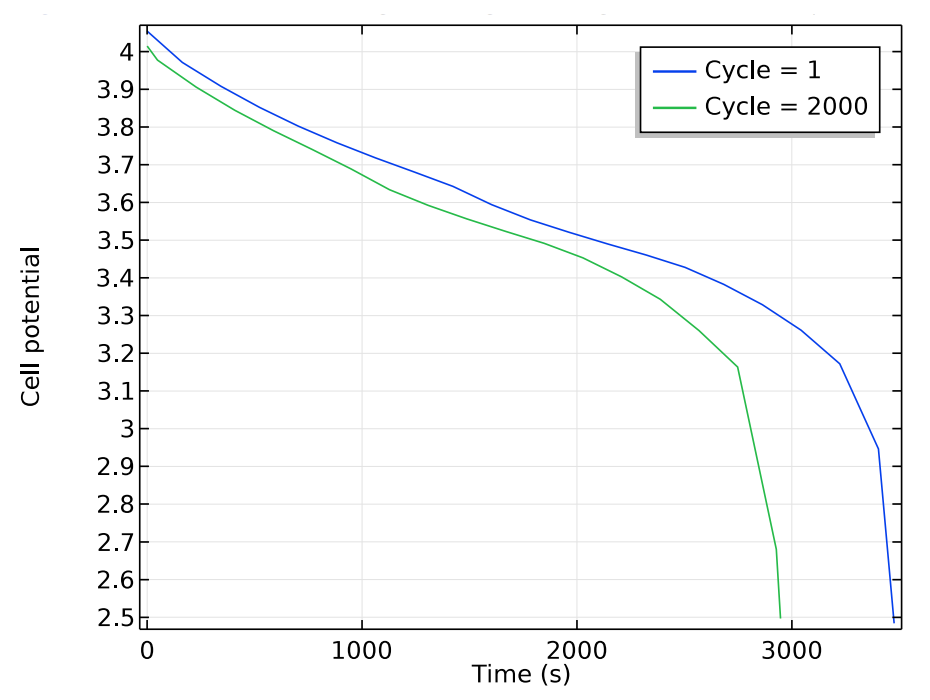

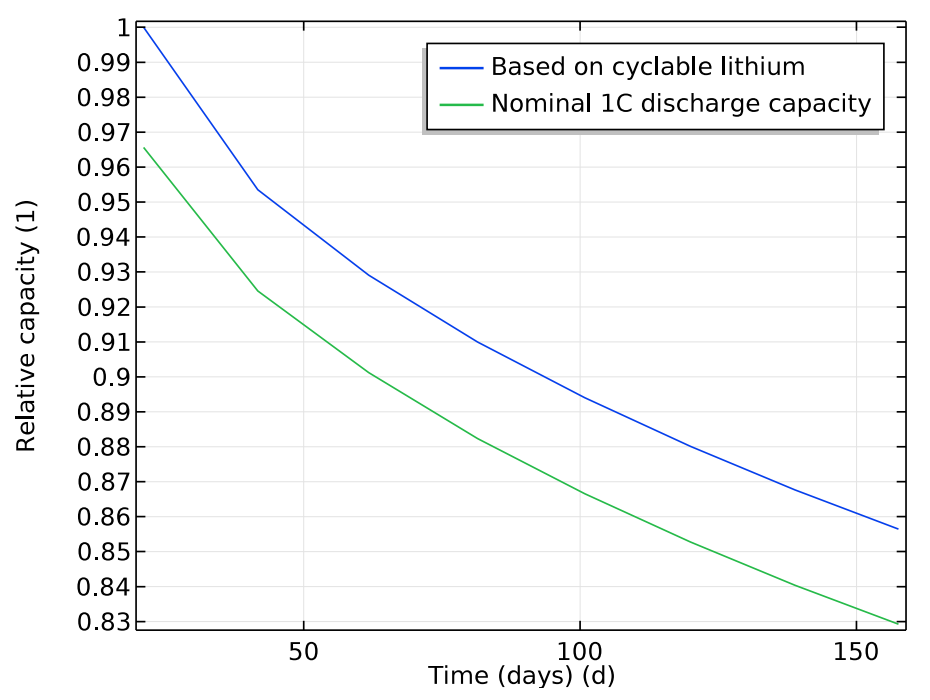

Via acting a time-dependent research of a battery all through the cycle, it’s imaginable to seek out the voltage all through discharge and examine the capability to each the entire gathered biking time and the entire selection of cycles. It is usually imaginable to research the electrolyte quantity fraction and forged electrolyte interphase (SEI) movie doable drop as opposed to the cycle quantity and the native SOC at the separator-electrode limitations. (The SEI supplies the electrolytes with insulation and conductivity.) Those elements can support within the design of batteries which might be optimized for long-term and dependable use in AVs.
